1. Introduction, features and specifications 1.3 Specifications

1.3.1 TIS- KEY- TOUCH Specifications

Operating voltage range

Keypad transmit format 4-6 digits key press to output card number format, 4 bits or 8 bits data.

DC 12V-14V (Supplied by the TIS- KEY- BOX)

Idle input current ≤35mA

Max proximity card read range EM&HID card: 3-6cm IC&CPU card: 2-6cm

Excitation Frequency

Card transmit format:

125KHz or 13.56MHz

Wiegand 26-37

125×83×21.7 mm (TIS- KEY- TOUCH)

Operating Temperature

Operating Humidity 0-95%

Input Controller

Dimension 261×97×42 mm

AC 100-240V

Output Power ≤36W

Power Input Voltage DC 12V-14V

Output current: ≤0.5A

Operating temperature range -20° C ~50° C

Operating Humidity 0-95%(non-condensing)

1.3.2 TIS- KEY- BOX

Dimension

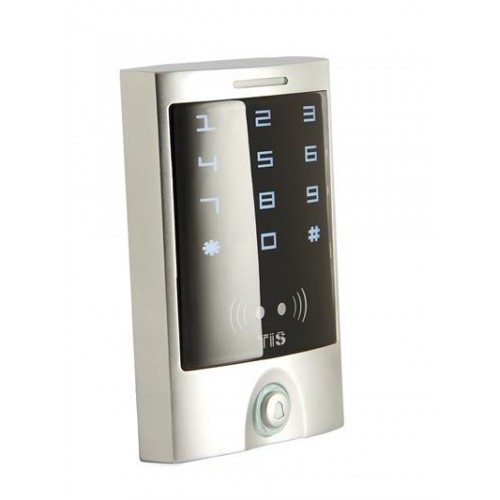

different inputs and outputs (TIS- KEY- BOX). TIS- KEY- TOUCH has card reading and keypad operation functions, and the

TIS- KEY- BOX provides power supply for the whole system, lock, alarm, ring bell, exit button and door contact.

TIS- KEY- TOUCH supports EM, HID, IC or CPU cards (available for different models), controls single or dual doors.

There are 2 users zones in dual doors mode. It supports up to 2000 users in total, each user has one card and one PIN.

TIS- KEY- TOUCH supports 1 master code, one manager add card, one manager delete card, 1 anti-duress card and

1 anti-duress PIN, providing users with easy operation and safe guarantee.

1.2 Features

 Built-in intelligent secured switching power supply, input AC 100-240V or DC12-14V supply for both access control

unit and electric lock.

 Split design of the control part, Wiegand bus transmit format, prevent the lock unlocked by strong magnetic, short

circuit, open circuit or other illegal ways.

 Built-in 125KHz (EM, HID card) or 13.56MHz(IC, CPU card, ISO14443A) reader.

 TIS- KEY- TOUCH: Digital backlit key, the back light can be set to Normal ON, Normal OFF or Human-Approach ON

 With door bell function, built-in or external door bell optional.

 Multi-function, operating as slave reader, single door, dual door, interlock. anti-pass back, etc, suitable for various

occasion
